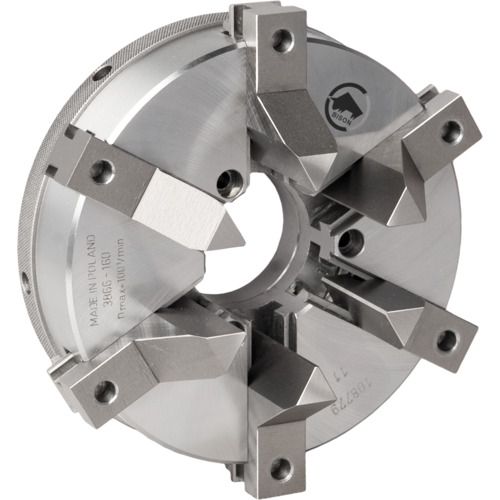

Quick-Clamp Self-Center Scroll Chuck - 3″ Plain Mount
| Type | Self-Centering | Chuck Style | Manual |
| Number of Jaws | 6 | Weight | 2.8 lbs |
| Chuck Size | 3″ | Model No | 8690300 |
| Mount | Plain Back | Inner Diameter Clamping Range | 0.039″-0.906″ |
| Operation Type | .950″ |
Product Features
| Remarks | •3 & 6 Jaw Quick Clamping Self-Centering Scroll Chucks •For Drilling & End Mill Sharpening •BISON 3 & 6 Jaw keyless super accurate low profile chucks are designed to solve tool grinding problems. The keyless and pinionless gripping system allows the reduction of clamping and unclamping time to a minimum. 6-Jaw chucks provide a uniform distortion free clamping of workpieces. Chucks can be mounted on the spindle noses of toolgrinders, on rotary tables, indexing fixtures, measuring device. Special adapters for toolgrinders as well as adapters with 5C&MT shanks are available. •RPM 100. T.I.R.0.00059″ •Steel Body | Country of Origin | UNITED STATES |
Shipping Info
Package Weight
3
