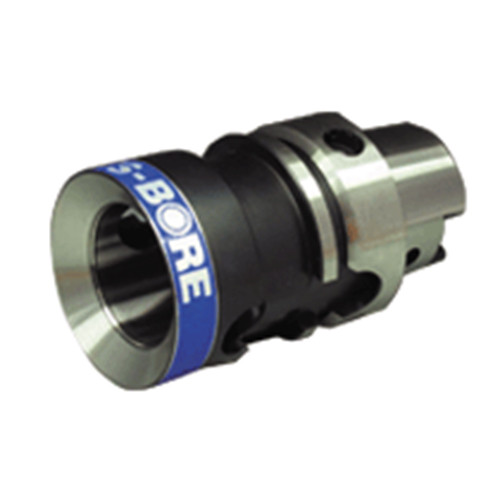

HSK A63 MB50

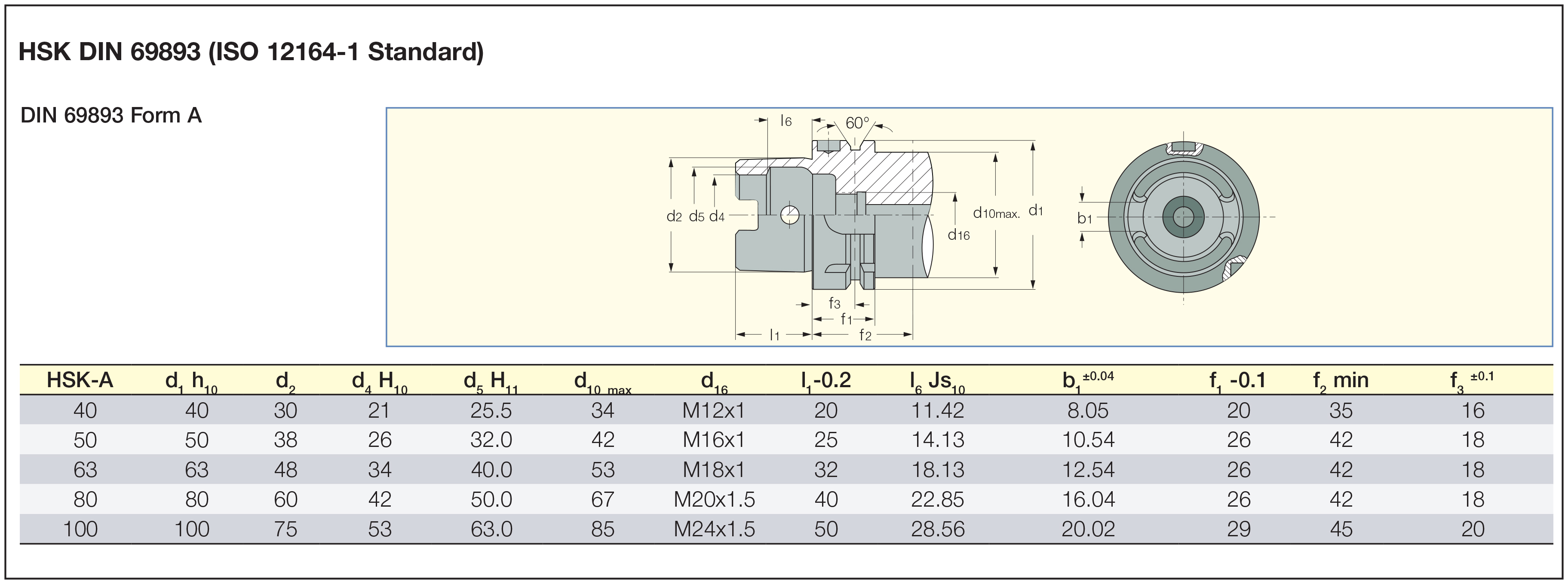

MB modular connection system with DIN 69893 HSK A taper shanks.
| Shank Size (SS) | 63 | Coolant Supply Property (CSP) | Coolant Thru |

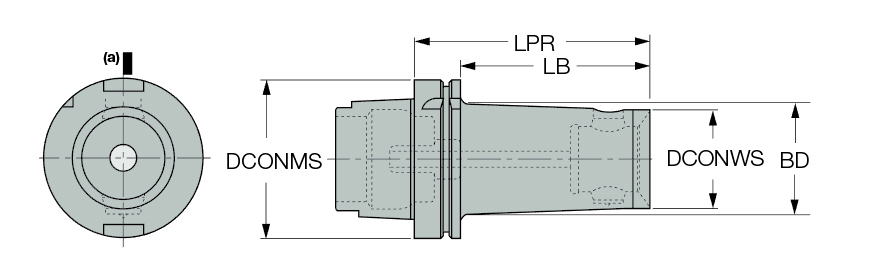

| Protruding Length (LPR) | 2.598″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Measurement Type | Inch |
| Connection Diameter Workpiece Side (DCONWS) | 1.9685″ | Tool Type | HSK |
| Connection Size (CSI) | MB50 | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | MB modular connection system with DIN 69893 HSK A taper shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
LocalField10
0
Package Weight
2.294
