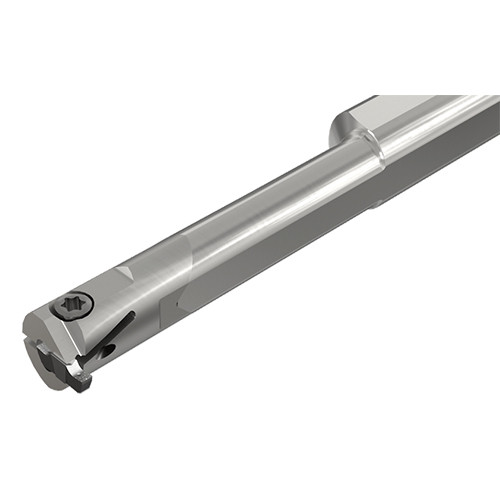

GEHIMR 15.9SC-14
Internal machining of carbide bars with coolant holes. Using GEMI and GEPI inserts in widths smaller than .075″ (the insert is not fully supported).

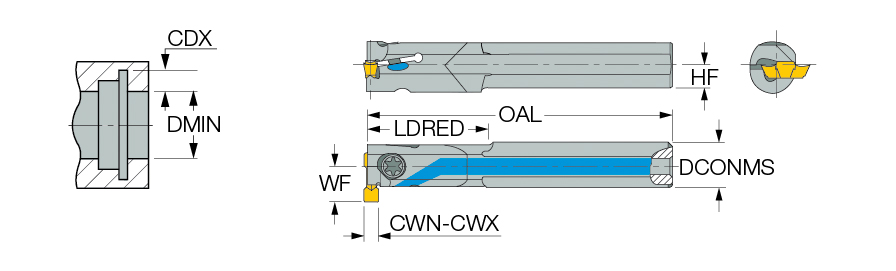

| Cutting Width Minimum (CWN) | 0.031″ | Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Width Maximum (CWX) | 0.075″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Depth Maximum (CDX) | 0.098″ | Application | | Int. Groove & Turn | Int. Grooving | Int. Grooving (side limit) | Int. Profiling | Threading (Int.) | |
| Minimum Bore Diameter (DMIN) | 0.551″ | Body Material | Steel |
| Functional Width (WF) | 0.43″ | Tool Type | Indexable Turn & Groov Tools |
| Head Length (LH) | 2-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 6″ |
Product Features
| Family Description | Internal machining of carbide bars with coolant holes. Using GEMI and GEPI inserts in widths smaller than .075″ (the insert is not fully supported). | Country of Origin | Israel |
Shipping Info
Package Weight
0.670
