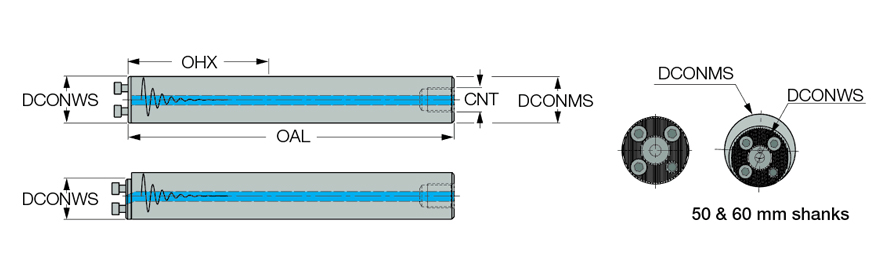

| Connection Diameter Machine Side (DCONMS) | 20 mm | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 260.3 mm | Body Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Metric |
| Shank Type | Round Shank w/3 Flats | Connection Code Machine Side (CCMS) | Cylindrical |
| Connection Diameter Workpiece Side (DCONWS) | 20 mm |
Product Features

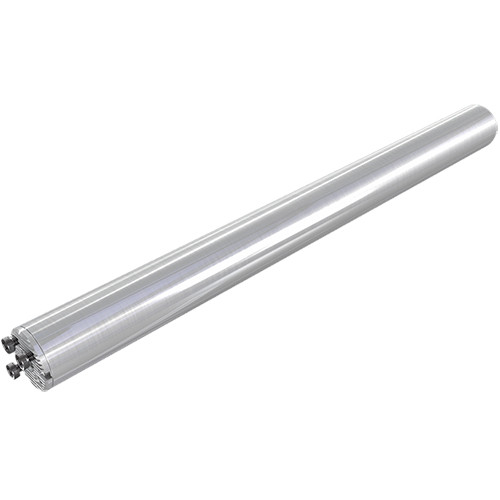

| Family Description | Anti-Vibration bars with through coolant for interchangeable heads. | Country of Origin | China |

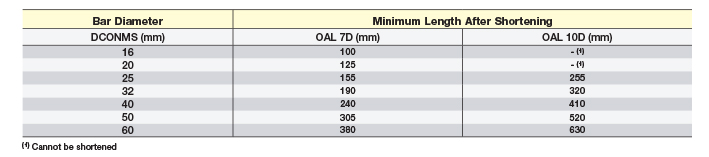

| Remarks | Only steel bars can be shortened. For details, click on More Info 12xBD and 14xBD cannot be shortened |
Shipping Info
Package Weight
3.527
