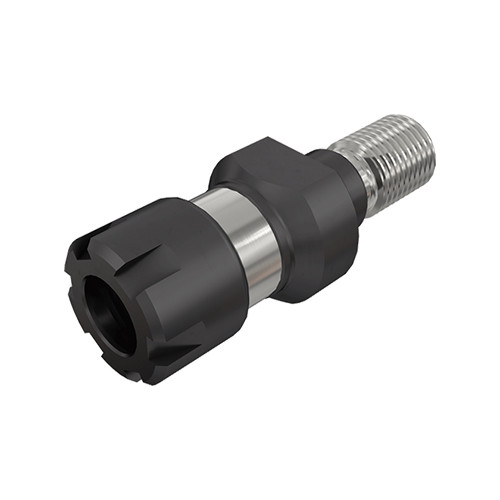

CDP ER11 M10 M
DIN 6499 ER collet chucks with threaded FLEXFIT adaptations.

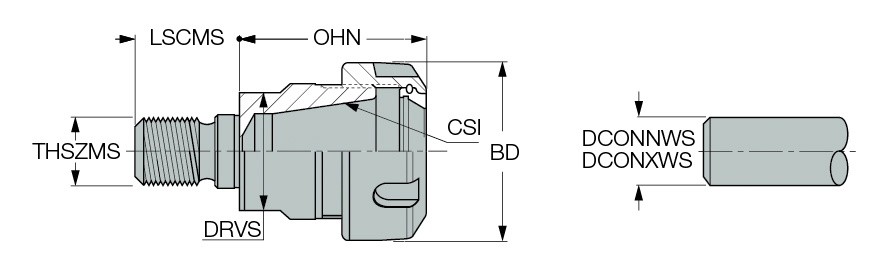

| Connection Size (CSI) | ER11 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.5 mm |
| Body Diameter (BD) | 16 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Shank Type | Round | Measurement Type | Metric |
| Shank Standard | FLEXFIT | Drive Size (DRVS) | 15 mm |
| Shank Length (LS) | 20 mm | Body Material | Steel |
| Tool Type | Unique Adapter Milling System | Inner Diameter | ER11 |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with threaded FLEXFIT adaptations. | Country of Origin | Israel |
| Remarks | For adaptation options, click on More Info. When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter |
Shipping Info
Package Weight
0.097
