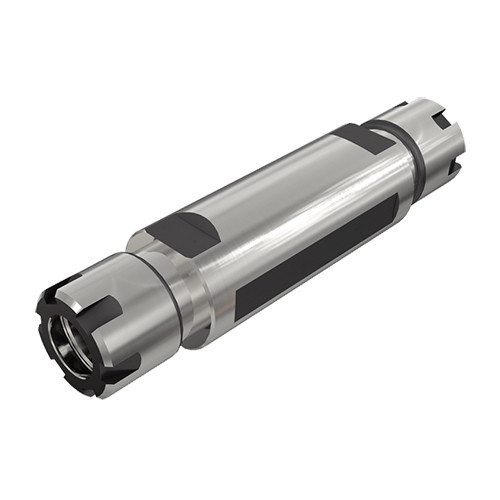

ST1 X2.441 ER16 MF D
Double-ended mini collets with cylindrical shanks and a clamping flat.

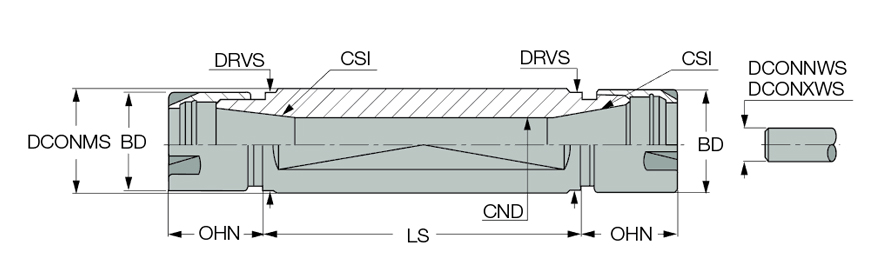

| Shank Size (SS) | 1.0 | Tool Type | Cylindrical Shanks |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Body Diameter (BD) | 0.866″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.396″ |
| Protruding Length (LPR) | 1.102″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Drive Size (DRVS) | 0.866″ |
| Shank Length (LS) | 2.441″ | Body Material | Steel |
Product Features
| Family Description | Double-ended mini collets with cylindrical shanks and a clamping flat. | Country of Origin | Israel |
Shipping Info
Package Weight
0.644
