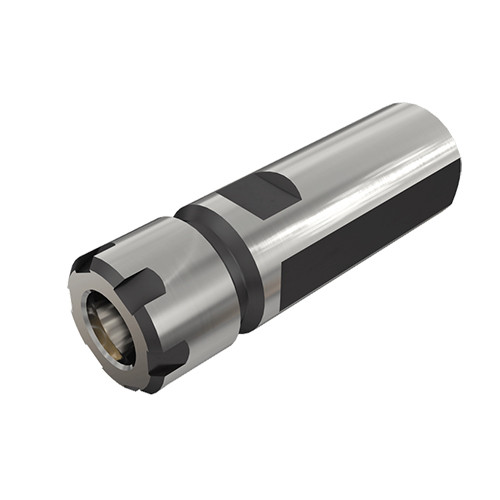

ST 25X154 ER20 MF
DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes.

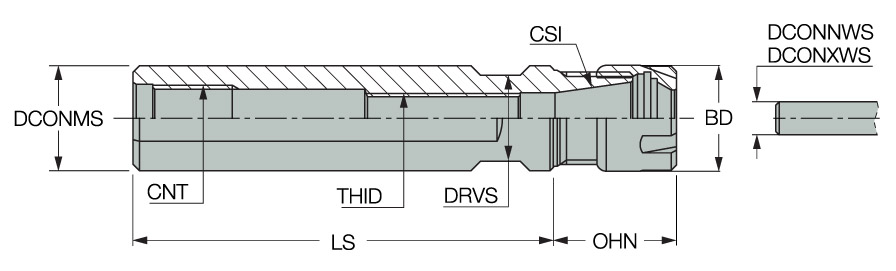

| Shank Size (SS) | 25 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 28 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Protruding Length (LPR) | 28 mm | Measurement Type | Metric |
| Shank Length (LS) | 154 mm | Drive Size (DRVS) | 22 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks and a clamping flat for Swiss-type CNC lathes. | Country of Origin | Israel |
Shipping Info
Package Weight
0.992
