BT50 SEMC 27X78

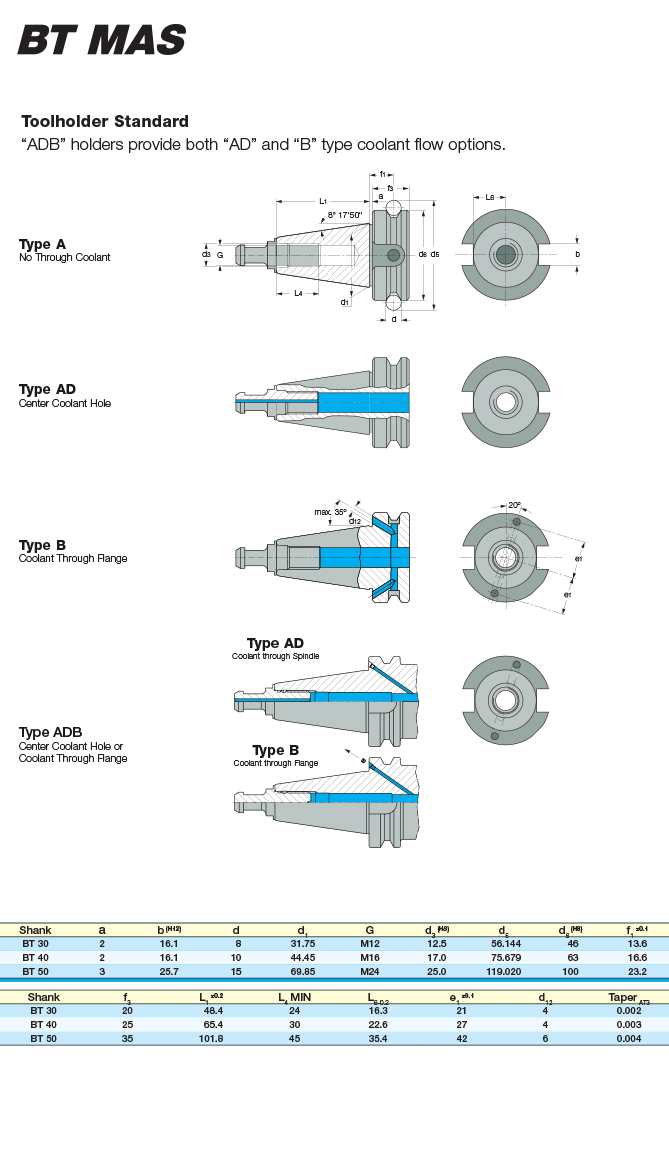

COMBI shell mill holders with BT MAS-403 AD tapered shanks .

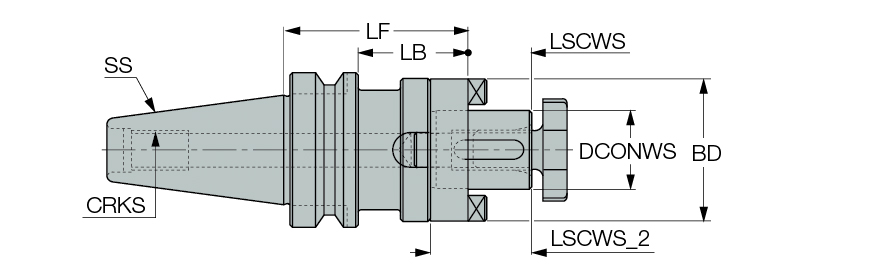

| Connection Diameter Machine Side (DCONMS) | 50 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Material | Steel |
| Shank Size (SS) | 50 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 78 mm | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 78 mm | Tool Type | BT |
| Body Diameter (BD) | 48 mm | Measurement Type | Metric |
| Shank Standard | BT | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 6″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | BT |
| Hex Size | 5/8″ |
Product Features
| Family Description | COMBI shell mill holders with BT MAS-403 AD tapered shanks . | Country of Origin | Italy |
| Remarks | For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Package Weight
9.568
