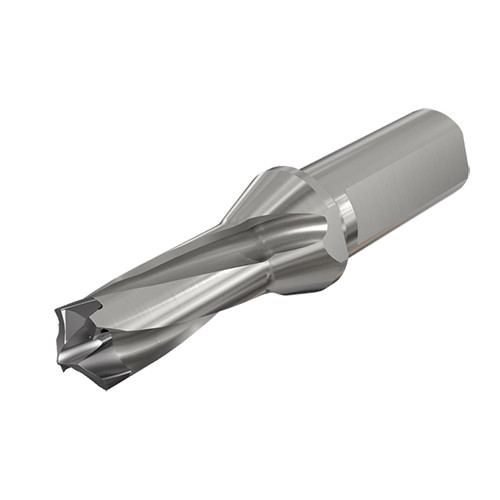

D3N 0748-112-100A-1.5D
Drill; 0.748″ Dia. × 0.748″ Min. Dia. × 0.784″ Max. Dia. × 1″ Shank Dia. × 4.879″ OAL × 1.283″ LU × 2.21″ Shank Length ; Series STAW
| Cutting Diameter (DC) | 0.748″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.283″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Master Insert Identification (MIID) | H3P 0748 |
| Insert Seat Size Code (SSC) | 19 | Point Length (PL) | 0.1614″ |
| Cutting Diameter Minimum (DCN) | 0.748″ | Series/List # | STAW |
| Cutting Diameter Maximum (DCX) | 0.784″ | Angle | 140 Degrees |
| Protruding Length (LPR) | 2.67″ | Body Material | Steel |
| Overall Length (OAL) | 4.879″ | Flange Diameter (DF) | 1.26″ |
| Shank Length (LS) | 2.21″ | Decimal Equivalent | 0.748″ |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and one flat shank. Drilling Depth: 1.5xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.838
