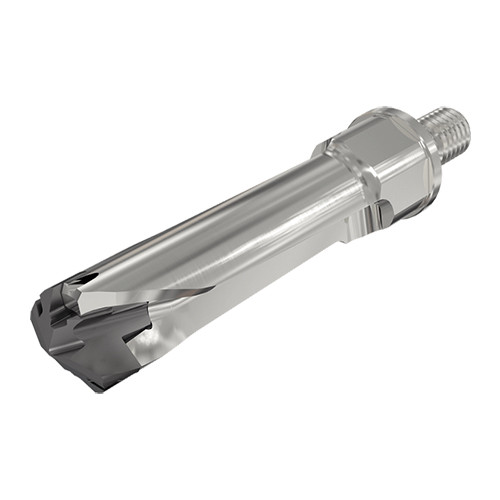

DCNM 150-045-M12-3D
Modular SUMO-CHAM drill dedicated for multi-spindle and Swiss-type machines with FLEX-FIT connection for easy adaptation and set up.The DCNM drill can hold any of the SUMOCHAM drilling heads for different kinds of applications and materials

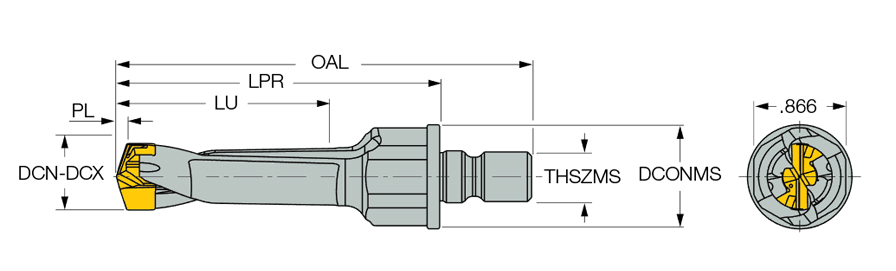

| Cutting Diameter (DC) | 0.591″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 2.1142″ | Cutting Item Count (CICT) | 1 |
| Application | | Drilling | | Measurement Type | Inch |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 150 |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Point Length (PL) | 0.08937″ |
| Insert Seat Size Code (SSC) | 15.0 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.591″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.63″ | Body Material | Steel |
| Protruding Length (LPR) | 2.9″ | Decimal Equivalent | 0.591″ |
| Overall Length (OAL) | 3.769″ | Connection Code Machine Side (CCMS) | FLEXFIT |
Product Features
| Family Description | Modular SUMO-CHAM drill dedicated for multi-spindle and Swiss-type machines with FLEX-FIT connection for easy adaptation and set up.The DCNM drill can hold any of the SUMOCHAM drilling heads for different kinds of applications and materials | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
0.01
Related Documentation
When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
