D3N 0748-598-100R-8D

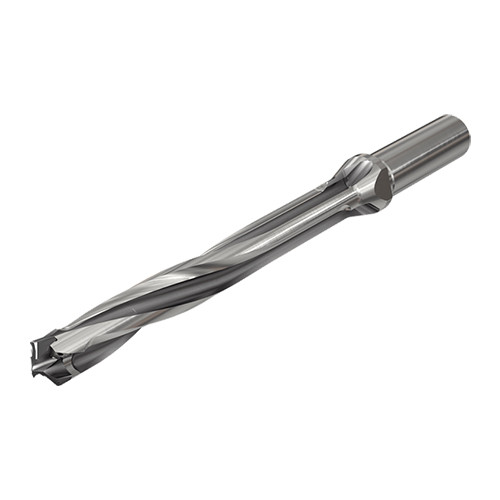

Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth 8xD

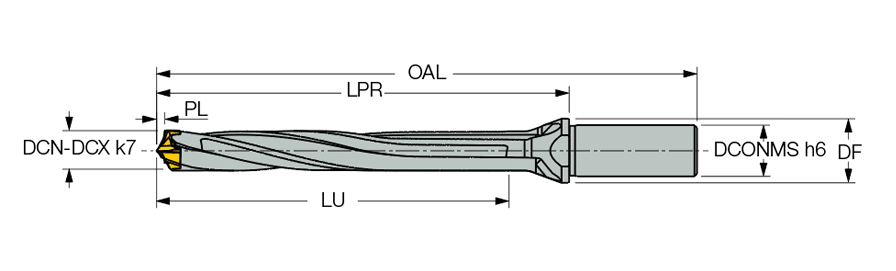

| Cutting Diameter (DC) | 0.748″ | Cutting Item Count (CICT) | 1 |
| Usable Length (LU) | 6.146″ | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | H3P 190-IQ |
| Connection Diameter Machine Side (DCONMS) | 1″ | Point Length (PL) | 0.161″ |
| Insert Seat Size Code (SSC) | 19 | Series/List # | STAW |
| Cutting Diameter Minimum (DCN) | 0.748″ | Angle | 140 Degrees |
| Cutting Diameter Maximum (DCX) | 0.784″ | Body Material | Steel |
| Protruding Length (LPR) | 7.54″ | Flange Diameter (DF) | 1.26″ |
| Overall Length (OAL) | 9.741″ | Decimal Equivalent | 0.748″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Exchangeable head 3 flute drills with internal coolant holes and round shank. Drilling Depth 8xD | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
LocalField10
0
Package Weight
0.573
