SD S-A-L130-C16-SP15-C

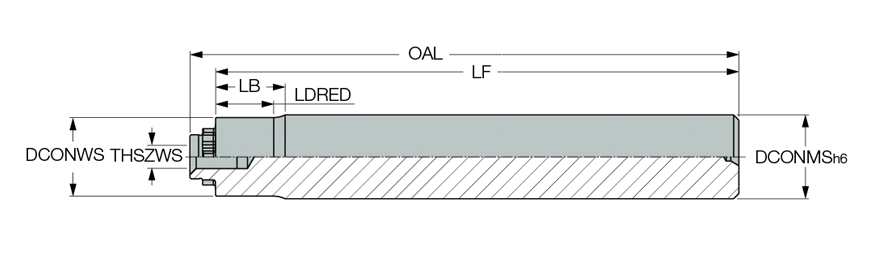

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M5x0.5 | Body Diameter (BD) | 15 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Length (LB) | 16 mm |
| Material | Carbide | Weight of Item (WT) | 0.36 Kg |
| Overall Length (OAL) | 135 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 18.2 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features

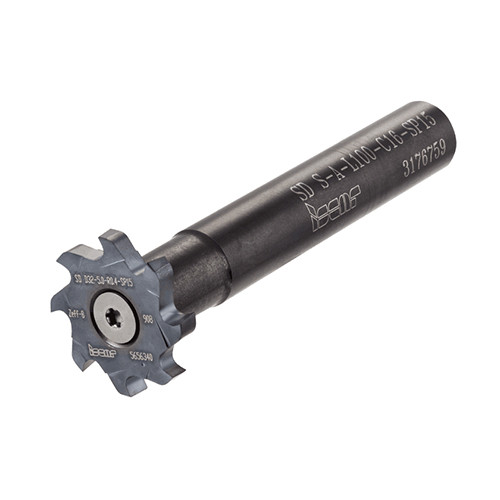

| Family Description | Stepped cylindrical shanks for interchangeable solid carbide milling heads. | Country of Origin | Israel |
| Remarks | Apply lubricant to the clamping screw |
