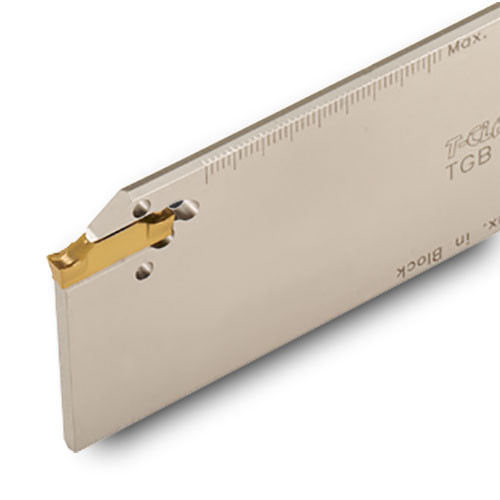

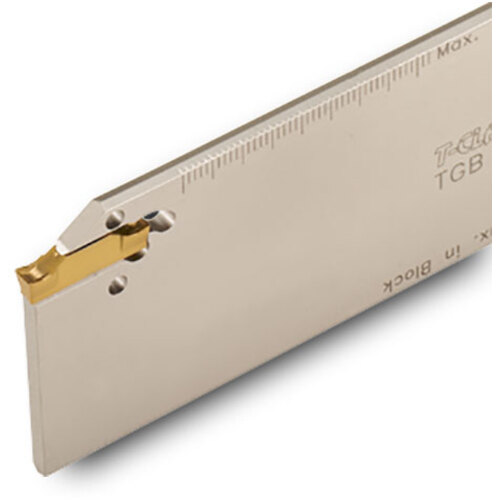

TGB45-4-L

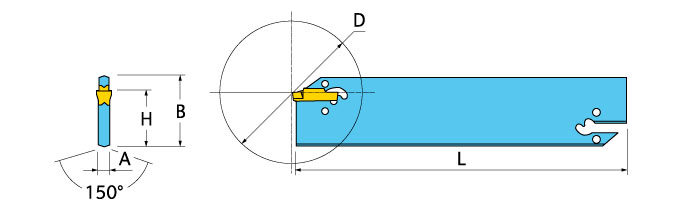

| Shank Height (H) | 1-1/2″ | Shank Standard | Square |
| Body Width (WB) | 0.126″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 1.2 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Maximum (CWX) | 1.2 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 6.3″ |
| Functional Length (LF) | 8.85″ | Cutting Direction (HAND) | Neutral |
| Cutting Position | External | Measurement Type | Inch |
| Application | | Ext. Grooving | Parting | | Insert Seat Size Code (SSC) | 4 |
Product Features
| Country of Origin | Usa |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.648
