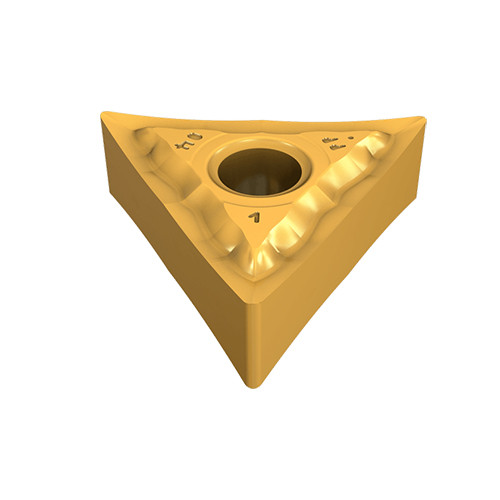

TNMG 332-PP IC9250
Double-sided triangular inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials like aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys.
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.039″ |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Depth of Cut Maximum (APMX) | 0.118″ |
| Insert Style | TNMG | Min. Turning Feed (ft(min)) | 0.0051 ″/rev |

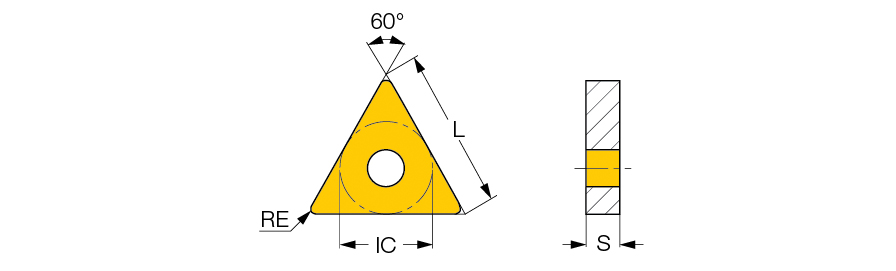

| Corner Radius (RE) | 0.0315″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Size | 160 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | PP |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Insert Included Angle (EPSR) | 60 Degrees | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | TiCN+alpha Al2O3+TiN | Series/List # | ISOI |
| Grade | IC9250 | Body Material | Carbide |
| Tool Type | Turn Negative Inserts | Model No | 8866423 |
Product Features
| Family Description | Double-sided triangular inserts with a positive rake angle and sharp, positive-radial edge. Used for machining very ductile materials like aluminum alloys, soft, low carbon steel, stainless steel, and high temperature alloys. | Country of Origin | Israel |
| Remarks | For dimensions and tolerances, see more info. |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.016
