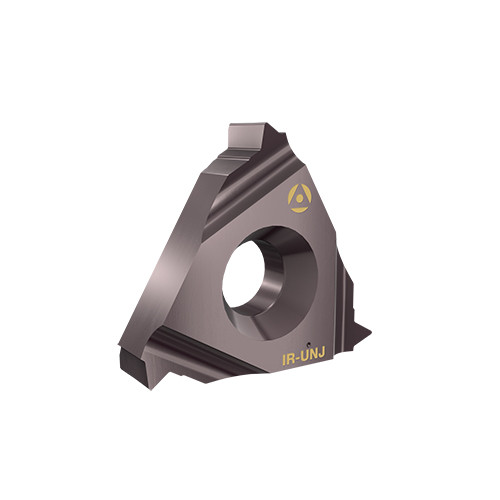

11IR 20UNJ AC22A
Internal Right Hand UNJ Profile Laydown Threading Inserts for the Aviation and Aerospace Industries
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | Z |
| Insert Length (INSL) | 0.433″ | Shape | Triangle |
| Threads per Inch (TPI) | 20 Threads/" | Threads per Inch Minimum (TPIN) | 20 Threads/" |
| Corner Radius (RE) | 0.0027″ | Threads per Inch Maximum (TPIX) | 20 Threads/" |
| Grade | AC22A | Tool Type | Threading Regular Inserts |
| Coating | TiAlN | Cutting Depth Maximum (CDX) | 0.433″ |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Position | INT | Body Material | Carbide |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Number of Teeth | 1 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Edge Length (L) | 0.433″ |
| Insert Style | Laydown (LT) | Thread Form Type (THFT) | NJ60 |
| Cutting Direction (HAND) | Right Hand | Profile Distance EY (PDY) | 0.03″ |
Product Features
| Family Description | Internal Right Hand UNJ Profile Laydown Threading Inserts for the Aviation and Aerospace Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.010
