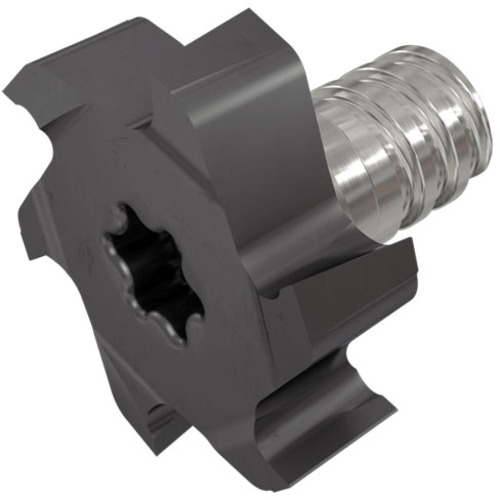

MM TS.625-H068D-06T06 IC908
Interchangeable solid carbide T-Slot milling heads with diverse corner radii and MULTI-MASTER threaded adaptation

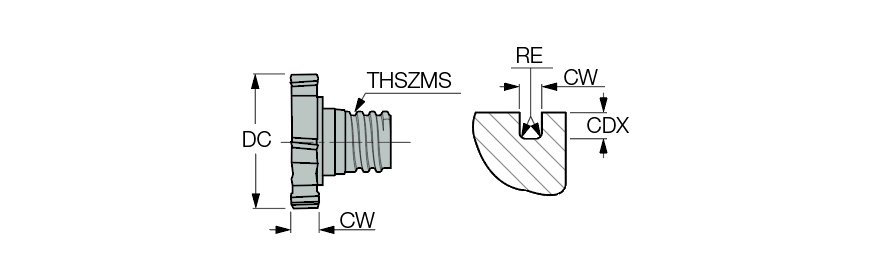

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 5/8″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Corner Radius (RE) | 0.016″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T06 | Tool Type | Solid "T" slot cutters |
| Cutting Depth Maximum (CDX) | 1/8″ | Body Material | Carbide |
| Cutting Width (CW) | 0.068″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 7.32″ |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads with diverse corner radii and MULTI-MASTER threaded adaptation | Country of Origin | Israel |

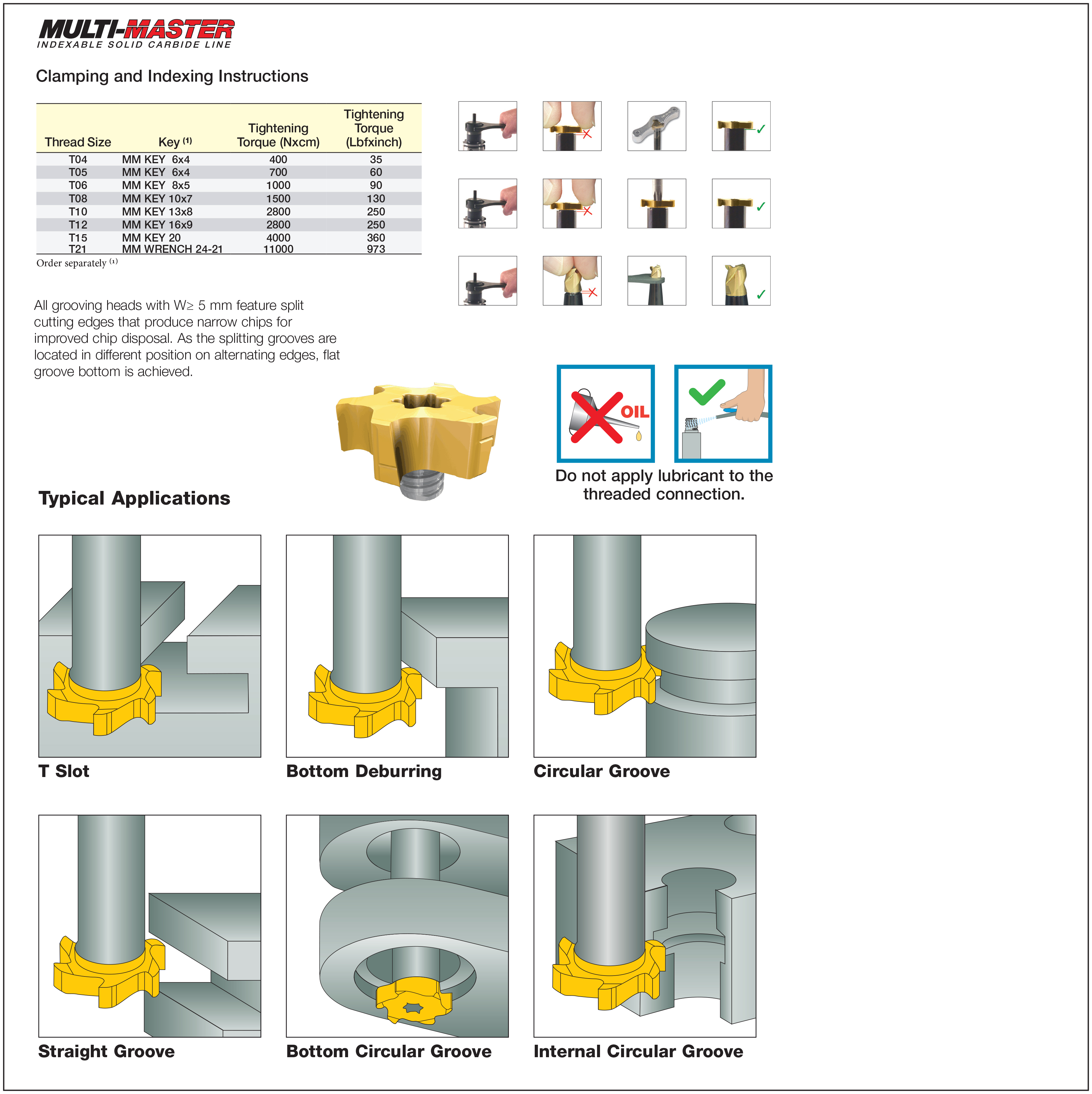

| Remarks | Inserts in .197 and wider feature chip splitting edges For tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection. |
