MM CAB T15T12-30.0/1.18-W
MULTI-MASTER shank reducers

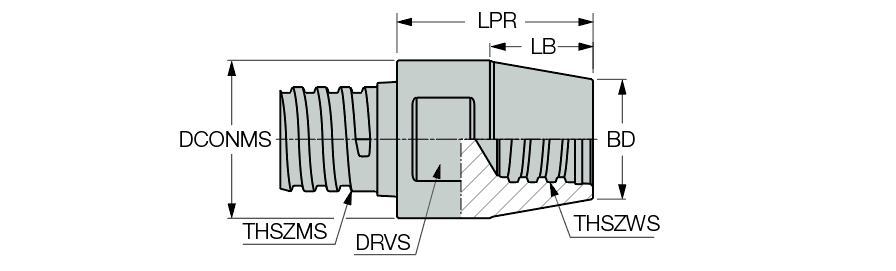

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T12 | Protruding Length (LPR) | 1.181″ |
| Connection Diameter Machine Side (DCONMS) | 0.941″ | Connection Thread Nominal Size Machine Side (THSZMS) | T15 |
| Overall Length (OAL) | 1.85″ | Drive Size (DRVS) | 0.787″ |
| Clamping Length Machine Side (LSCMS) | 0.669″ | Measurement Type | Inch |
| Tool Type | Interchangeable Milling Connectors | Body Material | Carbide |
| Body Diameter (BD) | 0.7205″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Body Length (LB) | 0.689″ |
Product Features
| Family Description | MULTI-MASTER shank reducers | Country of Origin | Israel |

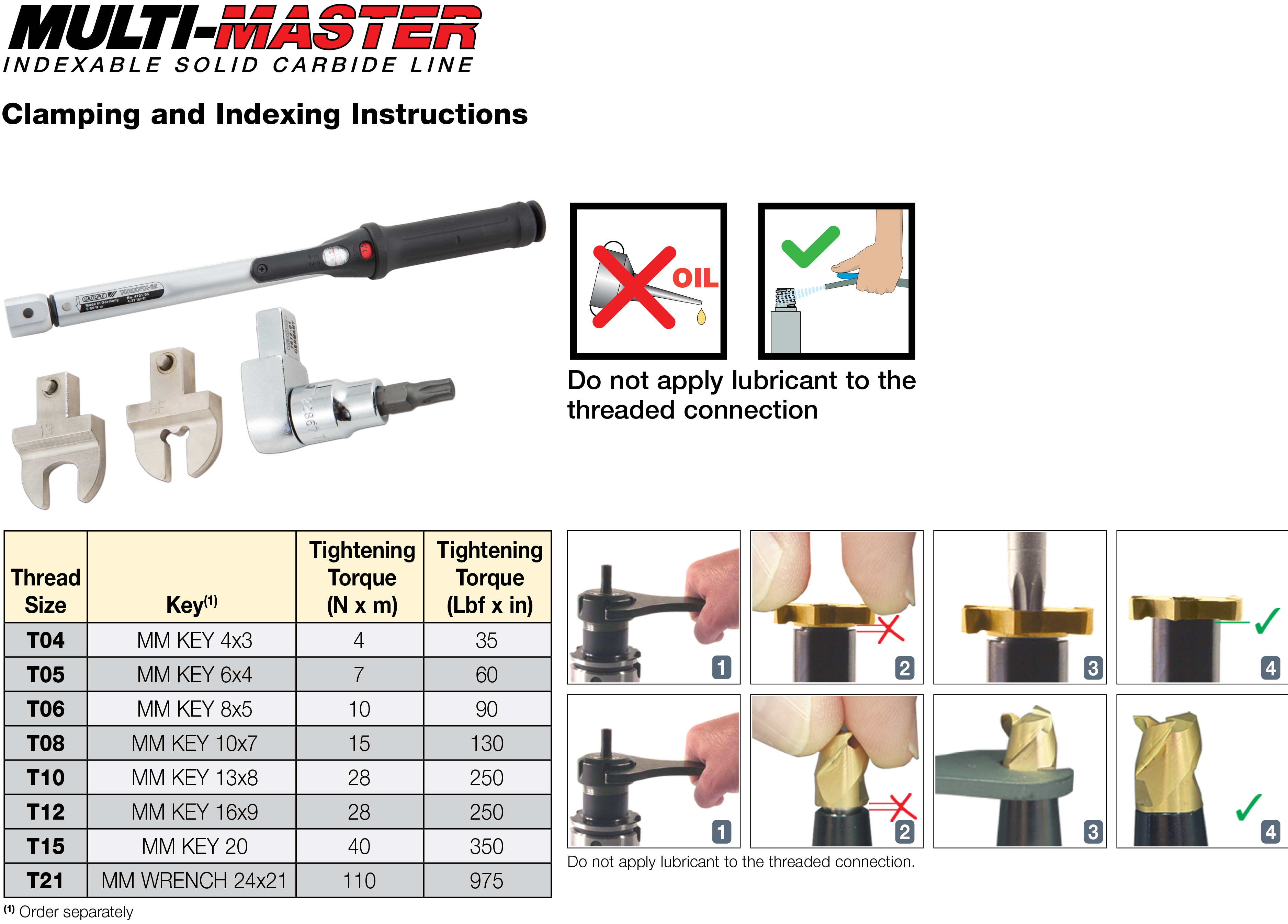

| Remarks | Clamping key to be ordered separately For adaptation, click on More Info |
Shipping Info
LocalField10
0
Package Weight
239
Related Documentation
Related Items
