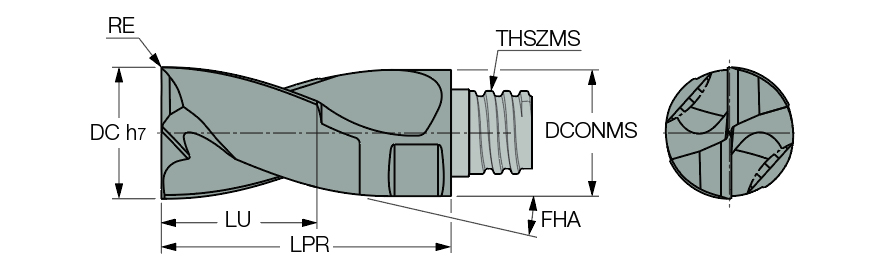

| Drill Bit Size / Cutting Diameter (DC) | 0.551″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.551″ | Measurement Type | Inch |
| Protruding Length (LPR) | 1.063″ | Tool Type | solid carbide Drills |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Grade | IC908 |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Connection Code Machine Side (CCMS) | MultiMaster |
| Application | | Drilling | |
Product Features

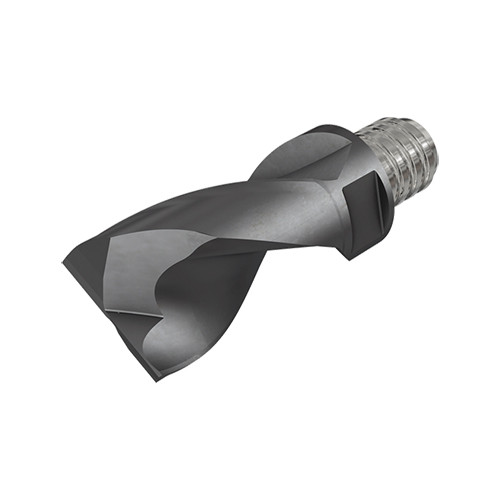

| Family Description | MULTI-MASTER exchangeable solid carbide flat bottom drill heads | Country of Origin | Israel |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. |
Shipping Info
Package Weight
40
