SLJ0600L1650NA G2F

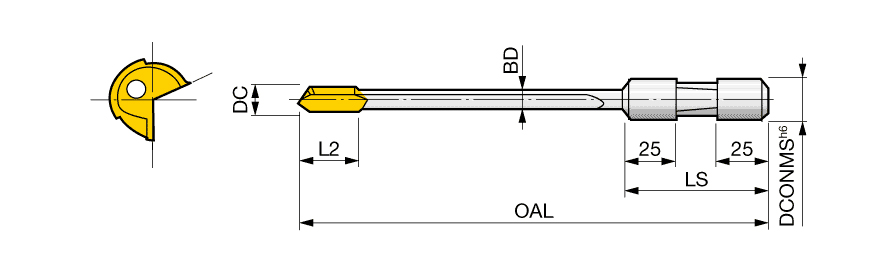

| Drill Bit Size / Cutting Diameter (DC) | 0.2362″ | Shank Length (LS) | 2.756″ |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2362″ | Shank Type | Central tapered |
| Decimal Equivalent | 0.2362″ | Cutting Edge Material | Carbide |
| Coating | Uncoated | Tool Type | Deep Hole / Gun Drill |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | G2F |
| Application | | Gundrill | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Usable Length (LU) | 61.85″ |
| Head Length (LH) | 0.984″ | Length Chip Flute (LCF) | 61.913″ |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 64.961″ |
| Point Angle (SIG) | 130 Degrees | Body Material | Carbide |
Product Features
| Family Description | Brazed Gundrills | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.455
