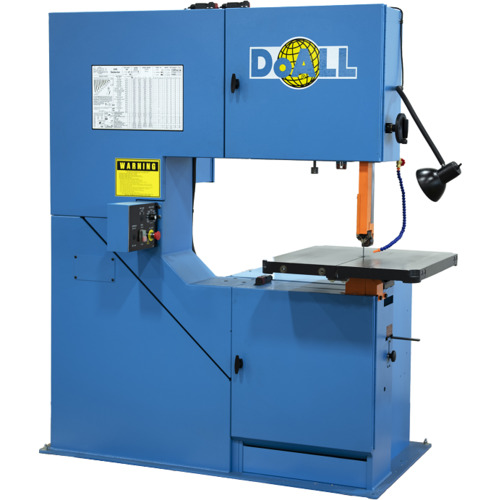

3613-V3 CONTOUR

Item # DA2112346

UNSPSC: 27112802

Brand: DoALL

MFG#: 3613-V3

Horizontal/Vertical

Vertical

Blade Thickness

‎0.032″ - 0.035″

round_capacity__90deg

13″

Blade Width

‎1/16″-1″

rectangle_capacity__90deg

13″ × 36″

Drive System

Variable Frequency AC Drive

Horsepower

3 hp

Miter-Cutting

Voltage

208 V/460 V

Table Tilt

‎10P-45N

Phase

3 Phase

Series/List #

Contour

Blade Length

199″

Product Features

Remarks

• Production Level: Low • Standard features: Work Light, Chip Blower and Post Elevating Hand Wheel • The DoALL 3613-V3 vertical contour band saw is perfect for operations which require flexibility and rugged dependability. • The ease of use for the machine operator also makes this vertical band saw an excellent choice. • The DoALL 3613-V3 can also be fitted with an optional blade welder, for sizing blades and doing contoured keyhole cuts on a variety of materials. The 3613-V3 offers a w 36″ by w 13″ (915mm × 330mm) cutting capacity with a tilting table that adjusts to meet a variety of needs. • Powered by a variable frequency 3 hp (2.23kW) AC inverter drive motor, you won't be lacking in performance when it's needed to do the job at hand.

Country of Origin

Taiwan

Shipping Info

Package Weight
