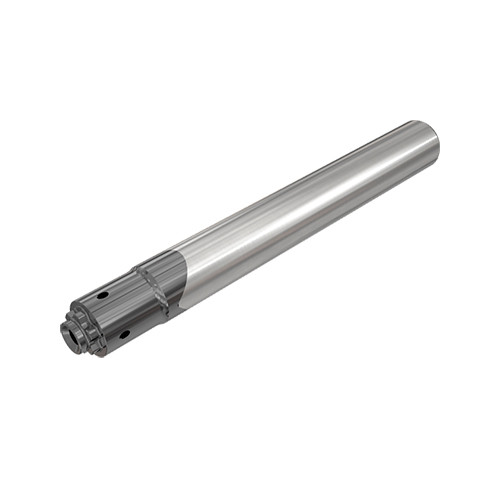

SD S-A-L130-C16-C-H-SP15
Stepped cylindrical carbide shanks with brazed steel segment and internal coolant channels, for interchangeable solid carbide milling heads.

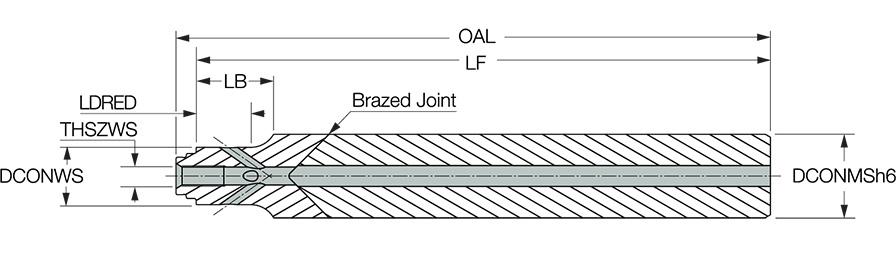

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M5x0.5 | Body Length (LB) | 18.2 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 130 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Stepped cylindrical carbide shanks with brazed steel segment and internal coolant channels, for interchangeable solid carbide milling heads. | Country of Origin | Israel |

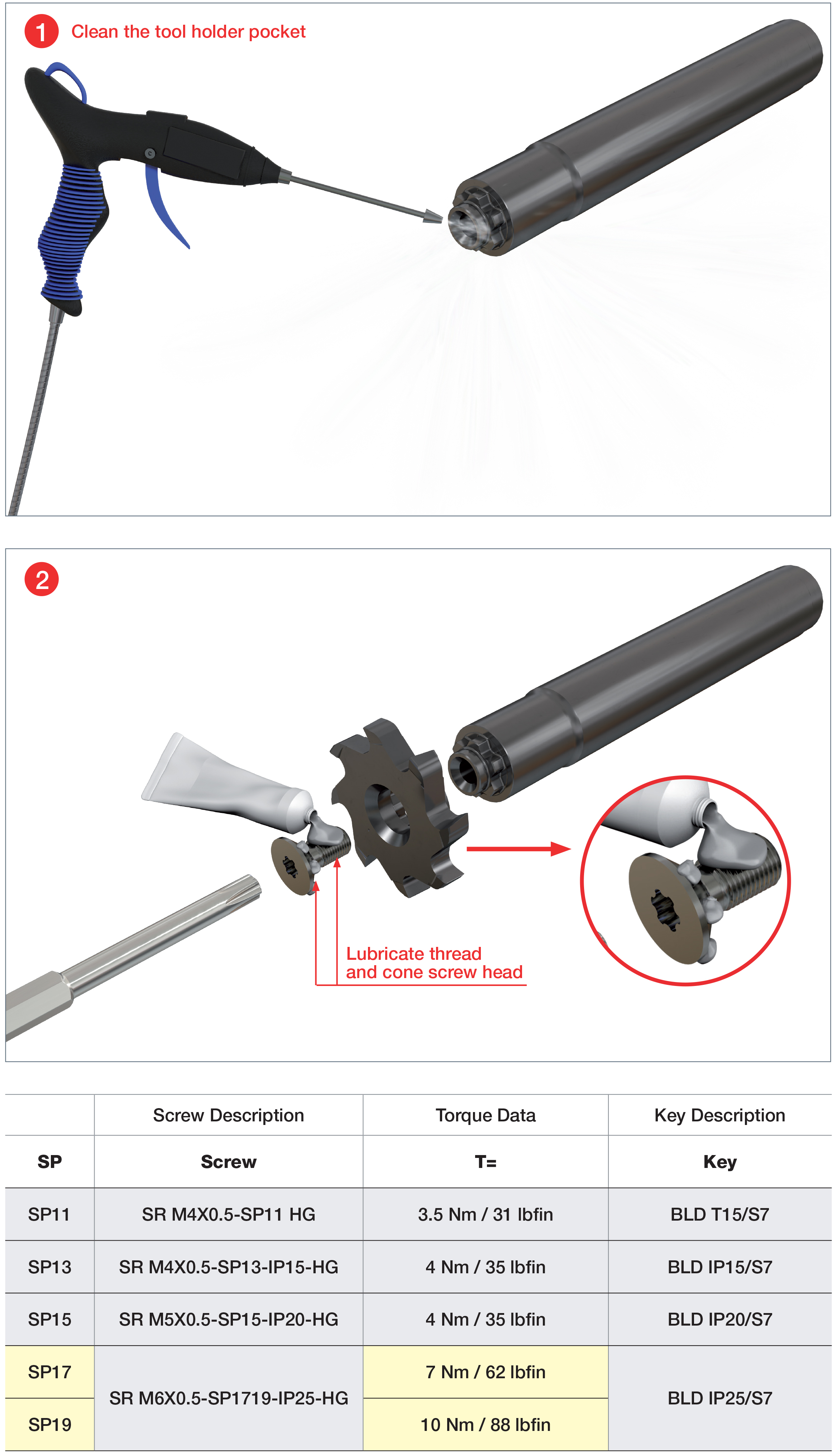

| Remarks | Apply lubricant to the clamping screw |
Shipping Info
Package Weight
423
