HSK A63 SRKIN10X120 CX

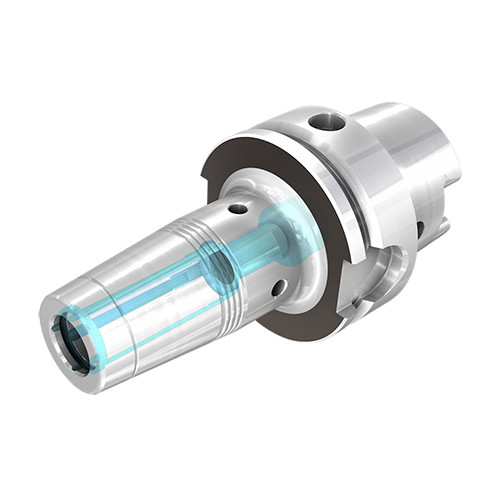

Thermal shrink chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance

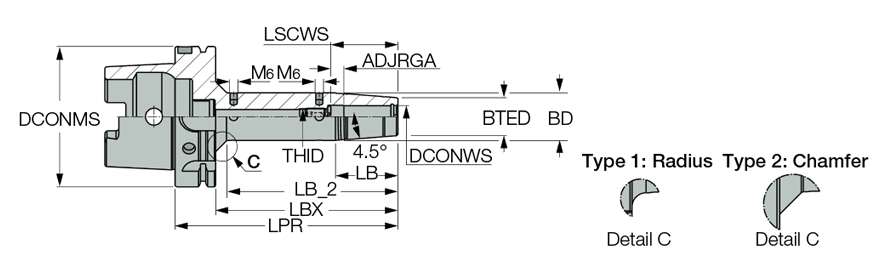

| Connection Diameter Machine Side (DCONMS) | 63 mm | Protruding Length (LPR) | 120 mm |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Body Length Maximum (LBX) | 94 mm |
| Body Length (LB) | 50.8 mm | Clamping Length Workpiece Side (LSCWS) | 39.8 mm |
| Body Length_2 (LB_2) | 89 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 32 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 24 mm | Body Material | Steel |
Product Features
| Family Description | Thermal shrink chucks with HSK DIN69893 Form A tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately) Use only inductive heating device for SRKIN holders For solid carbide, HSS and steel tools. For shank dimensions and shrink units information, Click on More Info ISCAR cannot guarantee an unbalance value less than 1 gr x mm Preset screw CX allows supply of coolant via JET channels - do not remove |
Shipping Info
Package Weight
2.577
