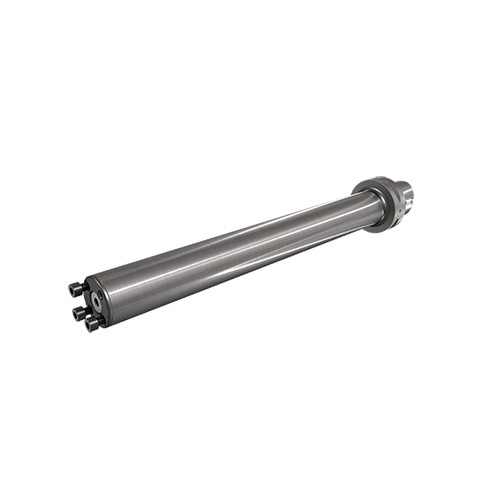

C6 AV-D60-L546-R-C
Adapter; 2.48″ Shank Dia. ; 1.5748″ Hole Dia. ; 2.3622″ Body Dia.

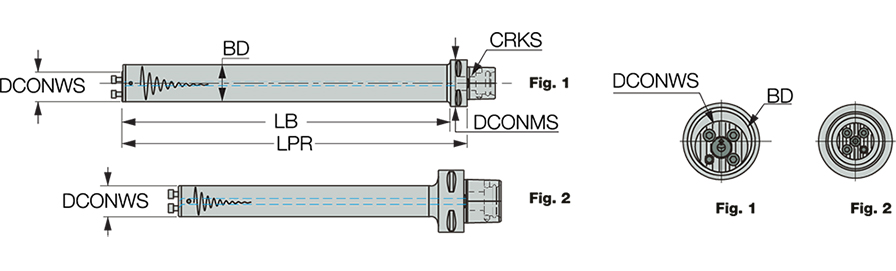

| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Diameter Workpiece Side (DCONWS) | 1.5748″ | Measurement Type | Inch |
| Body Diameter (BD) | 2.3622″ | Body Material | Steel |
Product Features
| Family Description | Integral anti-vibration holder with CAMFIX connection with through tool coolant for interchangeable heads | Country of Origin | China |
