TPSN UNF 7/8-14-M HETI
HSSE 5% Co Spiral Flute Machine Taps Unified Fine Threads, for a Wide Range of Materials

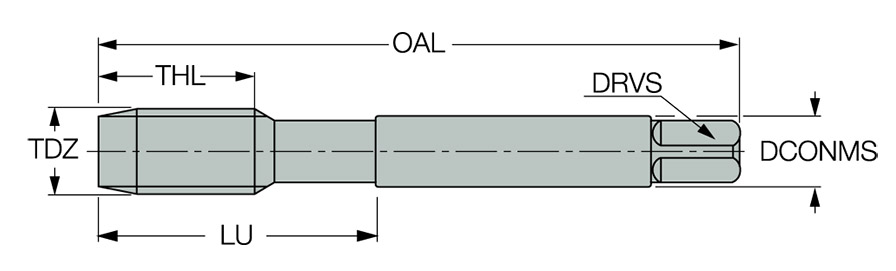

| Thread Diameter Size (TDZ) | UNF 7/8 | Tool Type | Machine Blind Hole Taps |
| Threads per Inch (TPI) | 14 /" | Coating | TiN |
| Overall Length (OAL) | 4.921″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.945″ | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Flute Count (NOF) | 4 | Body Material | HSS |
| Cutting Edge Material | HSS | Drive Size (DRVS) | 0.571″ |
| Standard | DIN 376 | Thread Size | UNF 7/8 - 14 |
Product Features
| Family Description | HSSE 5% Co Spiral Flute Machine Taps Unified Fine Threads, for a Wide Range of Materials | Country of Origin | Hungary |
Shipping Info
Package Weight
0.470
