AVC-D40-SVMCR-16T

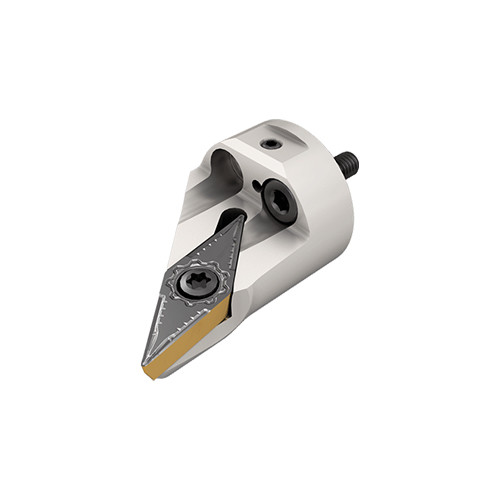

Interchangeable Boring Heads Carrying 35° Rhombic Inserts with 7° Clearance and 50° Approach Angle

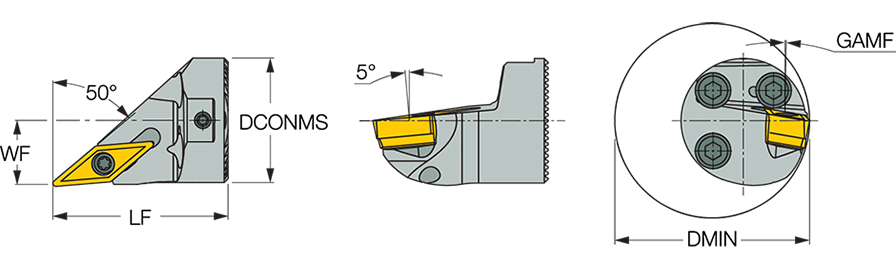

| Connection Diameter Machine Side (DCONMS) | 1.575″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 1.968″ | Application | | Int. 35° Diamond 142° Approach | |
| Overall Length (OAL) | 1.968″ | Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Width (WF) | 0.807″ | Rake Angle Radial (GAMF) | 3 Degrees |
| Master Insert Identification (MIID) | VCMT 160408 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2.362″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Interchangeable Boring Heads Carrying 35° Rhombic Inserts with 7° Clearance and 50° Approach Angle | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
236
