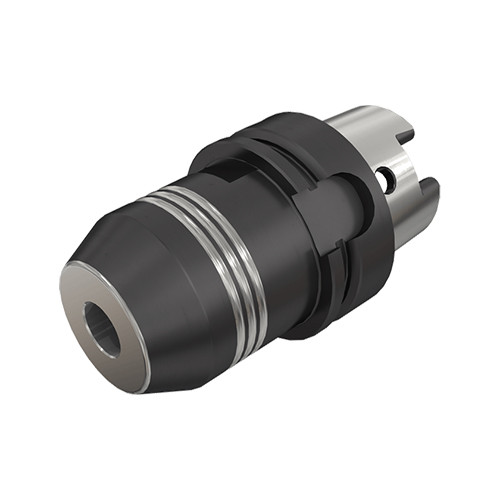

HSK A63 HYDRO 12X80 HD
Heavy duty, short hydraulic chucks with HSK DIN69893 Form A Shanks

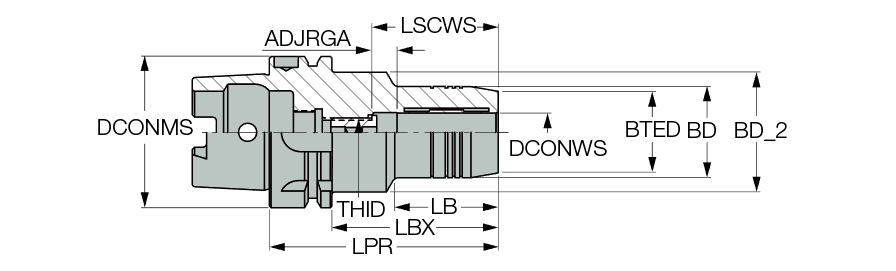

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Type | HSK |
| Body Length Maximum (LBX) | 3.38″ | Coolant Supply Property (CSP) | Coolant Thru |
| Body Length (LB) | 34.5 mm | Nose Length | 1.5354″ |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Measurement Type | Metric |
| Body Diameter (BD) | 42 mm | Body Material | Steel |
| Protruding Length (LPR) | 80 mm | Connection Code Machine Side (CCMS) | HSK |
| Overall Length (OAL) | 4.64″ |
Product Features
| Family Description | Heavy duty, short hydraulic chucks with HSK DIN69893 Form A Shanks | Country of Origin | Germany |
Shipping Info
Package Weight
2.890
