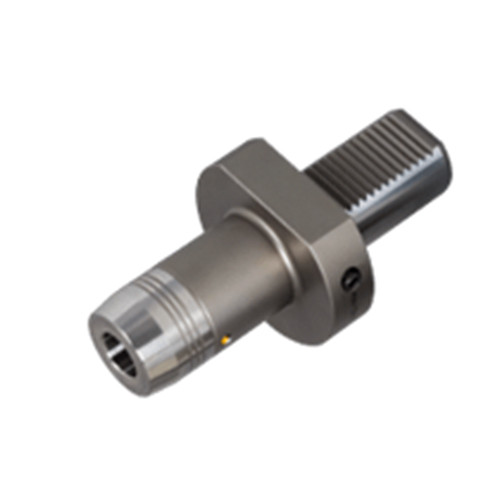

DIN69880 40 HYDRO 25X95
Hydraulic chucks with DIN69880 VDI shanks. for Semi-Finish and finish applications

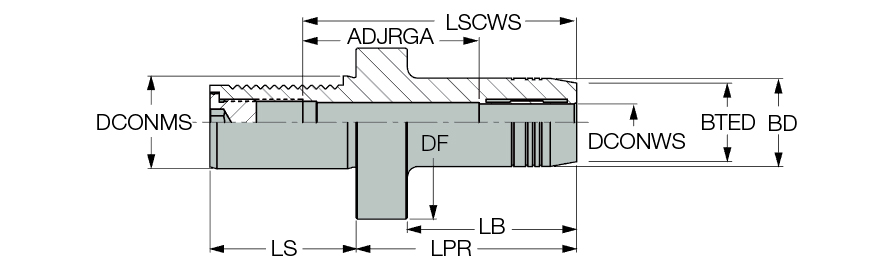

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Type | HSK |
| Body Length Maximum (LBX) | 3.38″ | Shank Size (SS) | VDI40 |
| Body Length (LB) | 73 mm | Tool Type | VDI-DIN69880 |
| Connection Diameter Workpiece Side (DCONWS) | 25 mm | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 50 mm | Nose Length | 1.5354″ |
| Protruding Length (LPR) | 95 mm | Measurement Type | Metric |
| Overall Length (OAL) | 4.64″ | Body Material | Steel |
Product Features
| Family Description | Hydraulic chucks with DIN69880 VDI shanks. for Semi-Finish and finish applications | Country of Origin | Germany |
| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used Note: Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately) |
Shipping Info
Package Weight
4.738
