45S20020T4RB151 IN05S

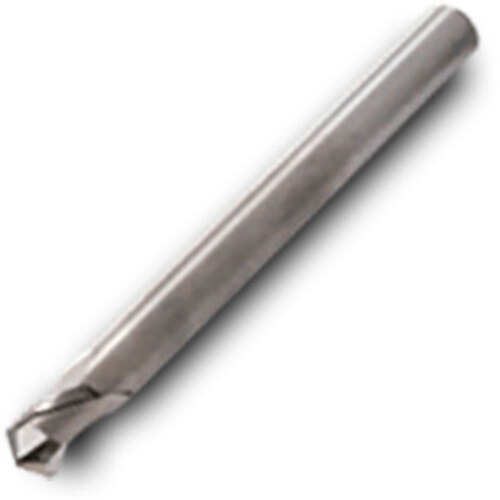

Chamfer Mill; 0.787″ Dia. × 0.012″ LU × 2″ OAL × 0.787″ Shank Dia. ; 2 FL ; 50 Degrees ; Carbide ; AlTiN ; IN05S ; Series 64
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Point Angle (SIG) | 50 Degrees |
| Application | | Chamfering | Shouldering | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.787″ | Coating | AlTiN |
| Usable Length (LU) | 0.012″ | Grade | IN05S |
| Flute Count (NOF) | 2 | Tool Type | Chamfer Mill |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Series/List # | 64 |
| Connection Diameter Machine Side (DCONMS) | 0.787″ | Body Material | Carbide |
Product Features
| Family Description | Multi-function Aluminum applications | Country of Origin | Usa |
