C4 EM12X75 E

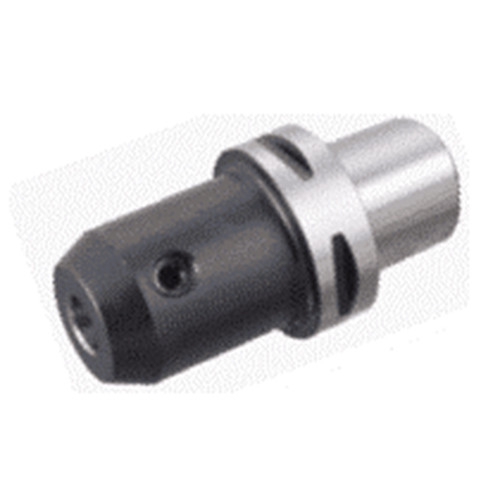

DIN1835 form E (whistle notch) drill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks.

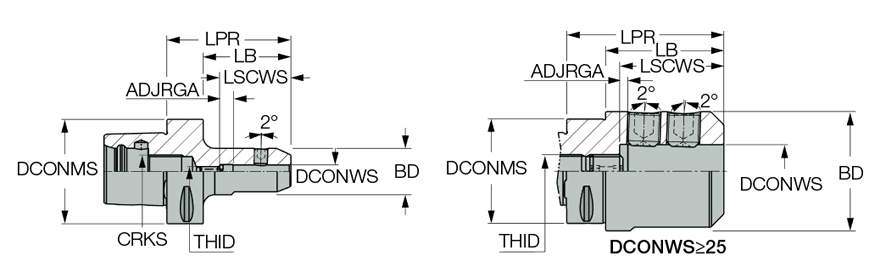

| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 75 mm | Connection Retention Knob Thread Size (CRKS) | M14 |
| Body Length (LB) | 55 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Connection Size Work Piece Side (DCONWS) | #2 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Body Material | Steel |
| Application | CAT50 |
Product Features
| Family Description | DIN1835 form E (whistle notch) drill holders with CAMFIX (ISO 26623-1) exchangeable tapered shanks. | Country of Origin | Turkey |
| Remarks | The adjustment screw has an internal coolant hole. |
Shipping Info
Package Weight
1.839
