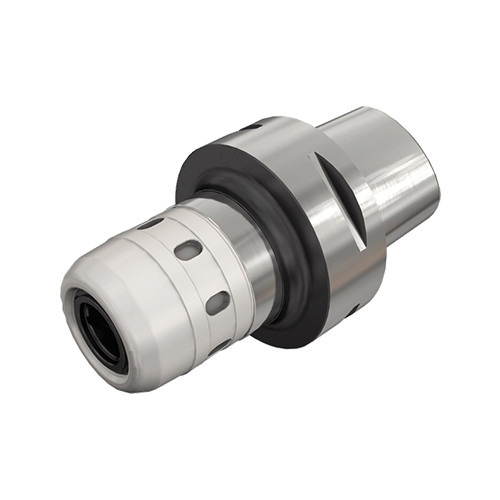

C8 MAXIN20X95
MAXIN power chucks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

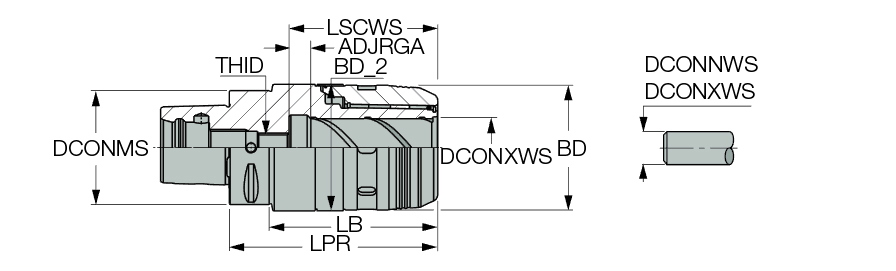

| Body Diameter (BD) | 51 mm | Shank Size (SS) | 80 |
| Protruding Length (LPR) | 96 mm | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Shank Type | BT | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
Product Features
| Family Description | MAXIN power chucks with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks. | Country of Origin | Israel |
| Remarks | Can be used for carbide and HSS tools The adjustment screw has an internal coolant hole Use of DCONXWS diameter tools provides best performance, as collets reduce the gripping force. |
Shipping Info
Package Weight
5.792
