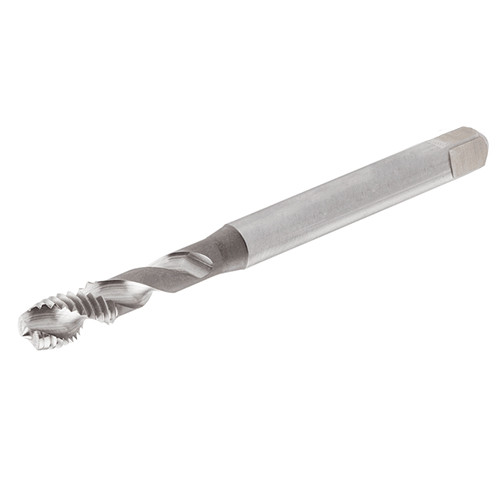

TPS UNF-9/16-18-M HETI
HSS spiral flute machine taps - unified fine threads, for a wide range of materials.

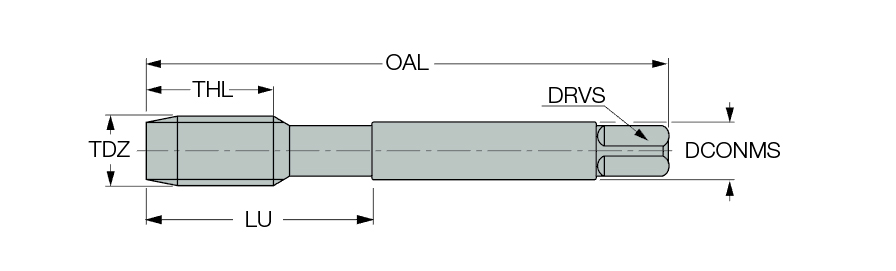

| Thread Diameter Size (TDZ) | 9/16″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 18 Threads/" | Style | DIN 374 |
| Thread Standard | THFT | | fmax | 3 |
| Overall Length (OAL) | 3.937″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.591″ | Grade | HETI |
| Connection Diameter Machine Side (DCONMS) | 0.433″ | d max | 9/16″" |
| Flute Count (NOF) | 3 | ToolTypeName | Machine Blind Hole Taps |
| Flute Helix Angle (FHA) | 40 Degrees | L125 | 3.937″ |
| Cutting Edge Material | HSS | Thread Form Type (THFT) | UN60 |
| Thread Tolerance Class (TCTR) | D6 | Series/List # | 299 |
| Standard | DIN 374 | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Tool Type | Machine Blind Hole Taps | Body Material | HSS |
| Chamfer | 2.5P-3P | Drive Size (DRVS) | 0.354″ |
| Coating | TiN | Thread Size | 9/16 - 18 |
Product Features
| Family Description | HSS spiral flute machine taps - unified fine threads, for a wide range of materials. | Country of Origin | Korea |
Shipping Info
Package Weight
0.168
