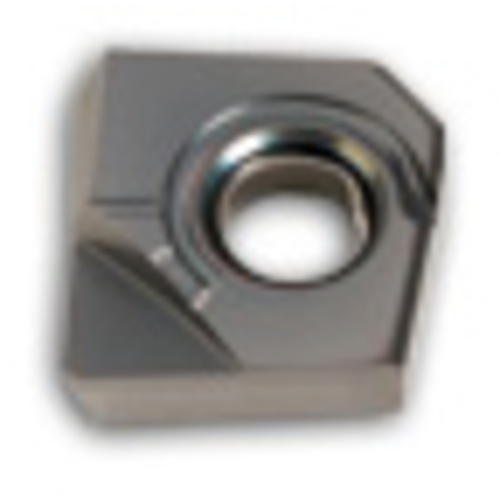

GQHG190508R01 IN2006
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shape | Round |

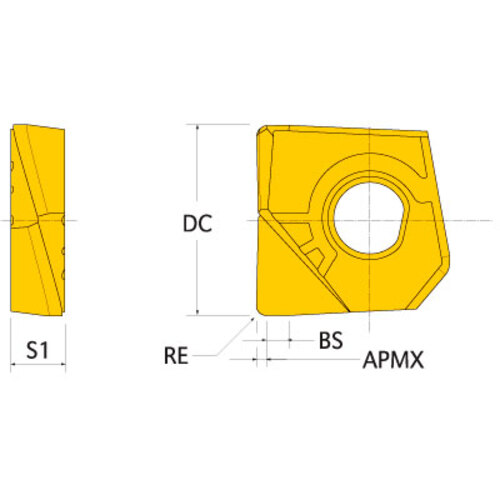

| Insert Length (INSL) | 0.72″ | Insert Style | GQHG190508R01 |

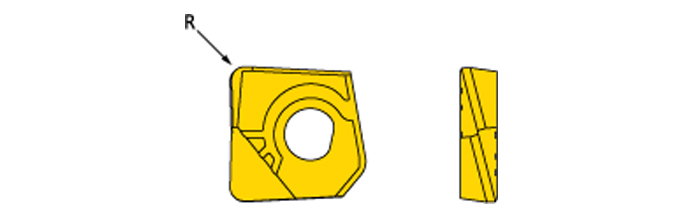

| Corner Radius (RE) | 0.031″ | Insert Body Diameter (INSBD) | 3/4″ |
| Depth of Cut Maximum (APMX) | 0.03″ | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.205″ | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Steel |
| Grade | IN2006 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
LocalField10
0
Package Weight
0.059
