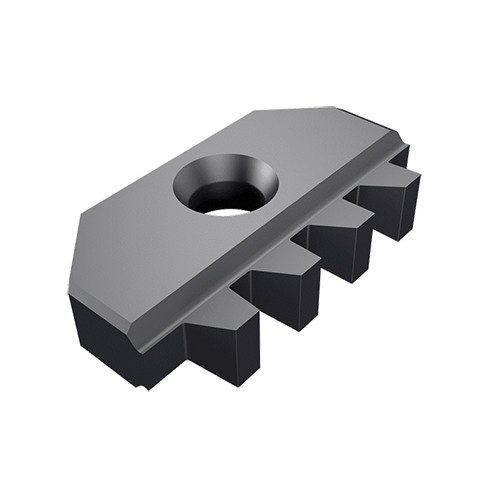

MT LNHU 2104 I10ACME 908
Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile thread milling inserts for feed screws.

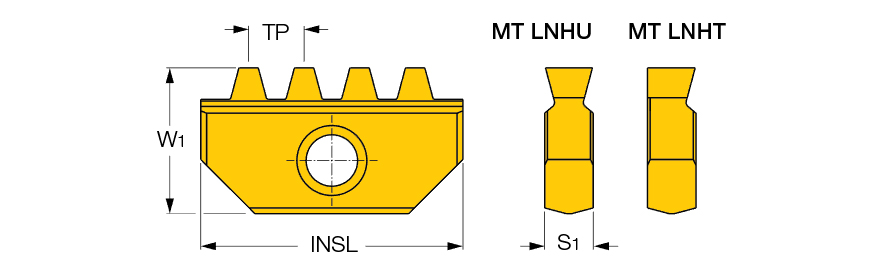

| Thread Standard | THFT | | Grade | IC908 |
| Thread Pitch (TP) | 2.54 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 10 | Coating | TiAlN |
| Insert Length (INSL) | 0.827″ | Tool Type | Threading Regular Inserts |
| Insert Width (W1) | 0.472″ | Measurement Type | Inch |
| Insert Thickness Total (S1) | 0.185″ | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | AC29 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Type (TTP_DF2) | INT |
Product Features
| Family Description | Internal ACME (ASME/ANSI B1.5-1988 Class 3G) profile thread milling inserts for feed screws. | Country of Origin | Israel |
| Remarks | For cutting speed recommendations, Click on More Info. |
Shipping Info
Package Weight
0.039
