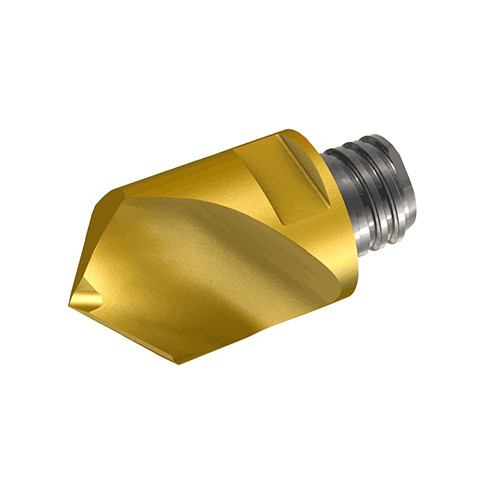

MM ECD-16X90-2T10 IC908
Drill Bit; 16 mm Dia. × 4″ OAL ; 90 Degrees ; T10 ; Round Shank ; Carbide ; TiAlN ; IC908 ; Series 1441
| Style | NC Spotting | Application | | Drilling | |
| Drill Bit Size / Cutting Diameter (DC) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Decimal Equivalent | 0.6299 | Flute Length | 1″ |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 16 mm | Point Diameter (PDD) | 1/4″ |
| Point Angle (SIG) | 90 Degrees | Measurement Type | Metric |
| Angle | 90 Degrees | Tool Type | center & Spot Drills |
| Overall Length (OAL) | 4″ | Cutting Length | 28 mm |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Series/List # | 1441 |
| Shank Type | Round | Grade | IC908 |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | NC Spot Drills for Accurate Hole Location without the need for a Bushing Guide. | Country of Origin | Israel |

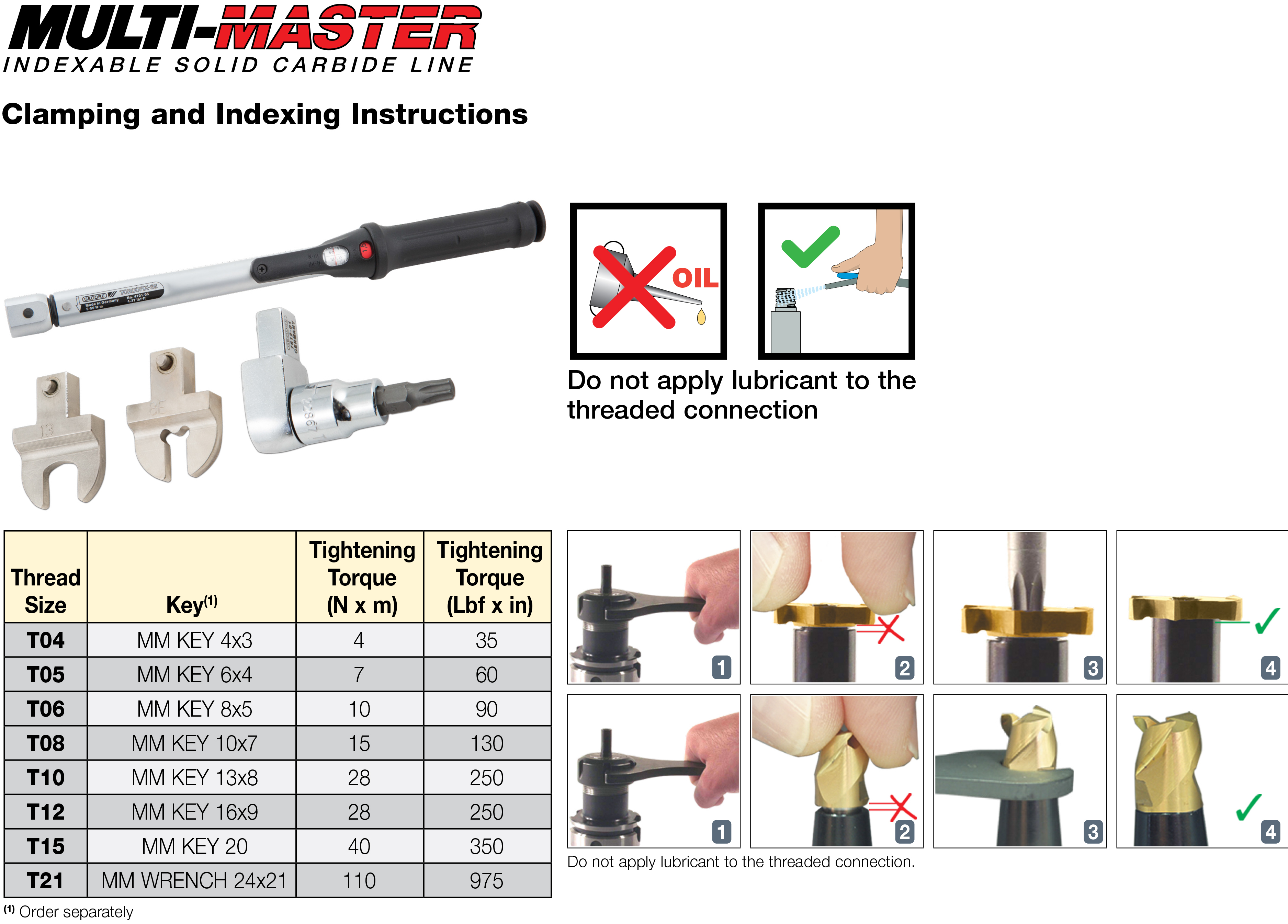

| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.12
Related Documentation
NC spotting drills are intended mainly for pre-drilling to accurately locate a hole without using guide bushing. A thin web at the point prevents drill walking during machining. In addition, these drills are suitable for drilling shallow-depth holes. Due to the 90-degree point angle, the heads can be also used for O.D. hole chamfering.
