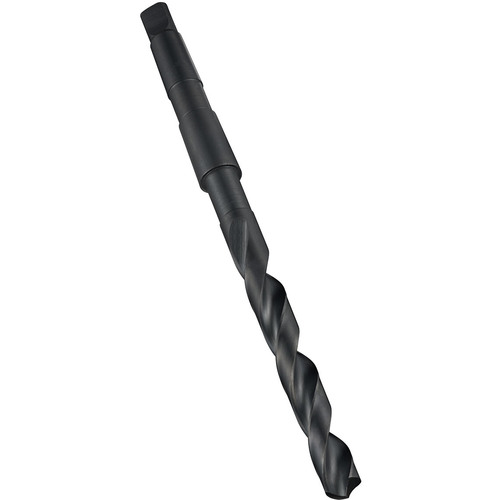

1-1/16″ HSS 118 Degree Thin Point Taper Shank Drill 4xD DIN 345-Black Oxide E-code # A1301.1/16
E-code # A1301.1/16
| Measurement Type | Inch | Length Group | 4xD |
| Drill Bit Size / Cutting Diameter (DC) | 1-1/16″ | Flute Count (NOF) | 2 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 1-1/16″ | Overall Length (OAL) | 291 mm |
| Decimal Equivalent | 1.0626″ | Pack Size | 1 |
| Angle | 118 Degrees | Point Shape | Thin Point |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Shank Type | Morse Taper |
| Coating | Black Oxide | Standard | DIN 345 |
| Coolant Supply Property (CSP) | External | Tool Type | Taper Shank Drill |
| Cutting Edge Material | HSS | Series/List # | A130 |
| Helix Angle | CW |
Product Features
| Family Description | E-code # A1301.1/16 | Country of Origin | JP |
Shipping Info
Package Weight
.169
